Picture of D-Link 8-Port Gigabit Smart Managed PoE Switch with 4 RJ45 and 4 PoE Ports

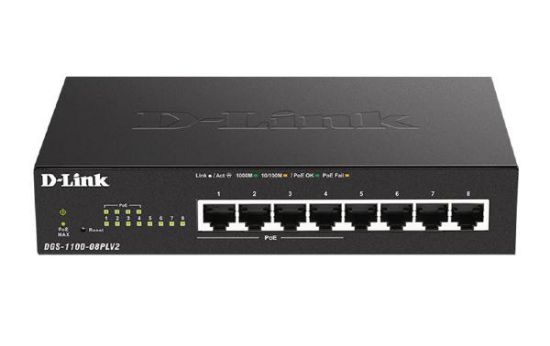

D-Link 8-Port Gigabit Smart Managed PoE Switch with 4 RJ45 and 4 PoE Ports

D-Link 8-Port Gigabit Smart Managed PoE Switch with 4 RJ45 and 4 PoE Ports
Be the first to review this product
Manufacturer: D-Link
Manufacturer part number: DGS-1100-08PLV2
$195.00
The DGS-1100V2 Series supports surveillance VLAN for IP surveillance deployments. This gives video traffic a dedicated VLAN and higher priority through the switch, separating surveillance traffic from the rest of the network. This ensures security and guarantees the quality of the video traffic, sparing businesses the added cost of dedicated surveillance hardware. Bandwidth Control can reserve bandwidth on a per-port basis for important functions that require larger bandwidth or have higher priority.
  • RJ-45 Ports: 8
  • RJ-45 Speeds: 10/100/1000
  • Combo Ports (RJ-45 + SFP): 4 RJ45 + 4 PoE Ports
  • SFP (Small Form-Factor Pluggable) Ports : 0
  • SFP Speeds: 0
  • PoE++ (60w) or higher available?: Yes
  • Number of PoE Ports: 4
  • Extended PoE?: No
  • Capacity in Millions of Packets per Second (mpps): 11.9 Mpps
  • Switching Capacity in Gigabits per Second (Gbps):16 Gbps
  • Web-based GUI: Yes
  • Redundant Power Supply: No
  • 19" Rack Mountable: Desktop or 19, rack mount (mounting brackets included)
  • DIN-Rail Mountable: No
  • Stacking Capacity (Physical): No
  • Stacking Capacity (Virtual): No
  • IPv4 Routing: Yes
  • IPv6 Routing: Yes
  • DHCP (Dynamic Host Configuration Protocol) Server Screening: Yes
  • Ruggedized: No
  • Operating Temperature: 0 to 40 C
  • Unit dimensions: 190 x120 x 38 mm
  • Warranty Licence: Limited Lifetime Warranty
Products specifications
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 8
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
10G support No
Link aggregation Yes
Spanning tree protocol Yes
VLAN support Yes
Virtual LAN features Tagged VLAN, Voice VLAN
Switching capacity 16 Gbit/s
Jumbo frames support Yes
Jumbo frames 10000
IGMP snooping Yes
Multicast support Yes
Rack mounting No
Product colour Black
LED indicators Yes
Fanless Yes
Power supply included Yes
Power Over Ethernet (PoE) Yes
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) power per port 30 W
Total Power over Ethernet (PoE) budget 80 W
Width 190 mm
Depth 120 mm
Height 38 mm
Sustainability compliance Yes
Compliance certificates RoHS
